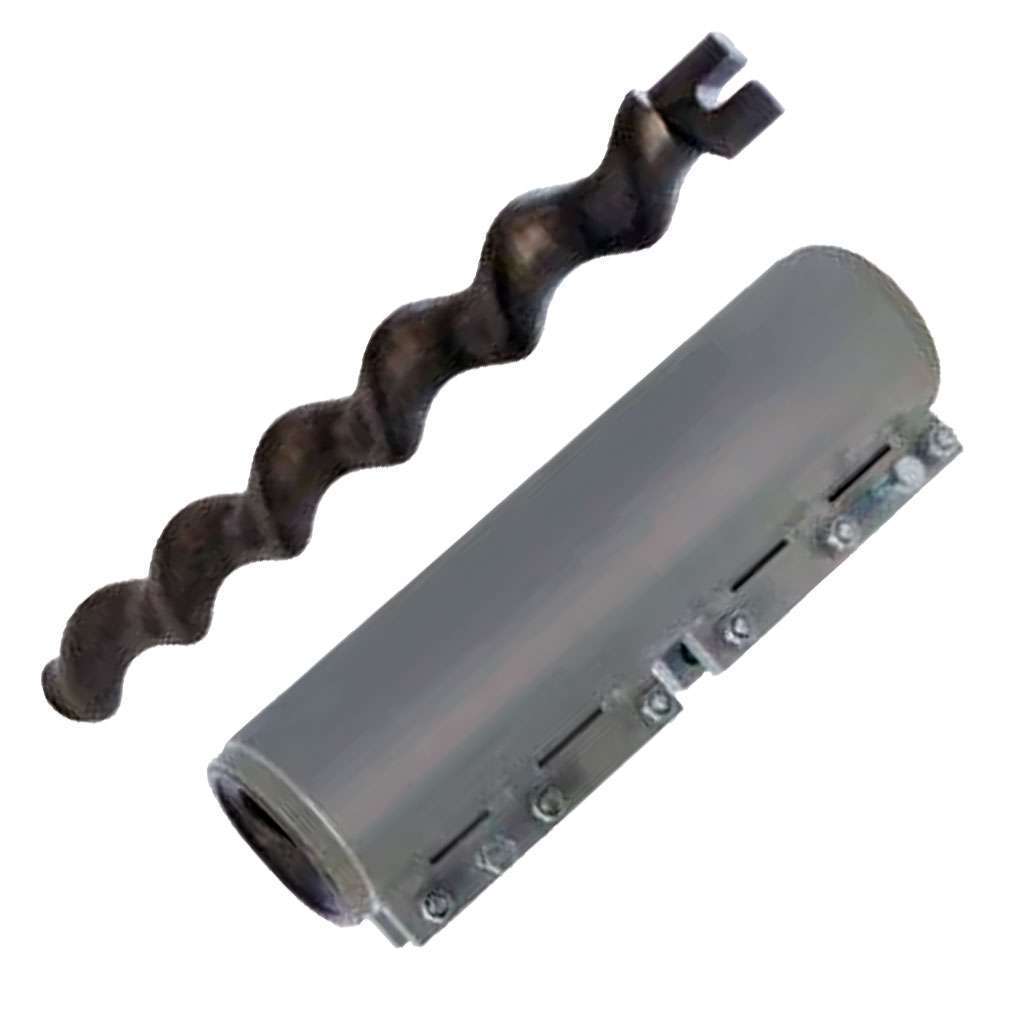

2L75 Rotor and Stator Set (Putzmeister SP11 THF)
Designed to fit Putzmeister flow screed pumps with a slot head, such as the SP11 THF or DHF models. Because of the high output, our 2l75 Rotor and Stator Set is ideal for pumping free-flowing screeds from a ready-mix truck. Our 2L75 can handle aggregate sizes of up to 8mm, offering a maximum output of up to 240 litres per minute.
We ship 2L75 rotors and stators separately to prevent them from sticking together in transport. When you are putting your rotor and stator together, please do not use oil. You should use products that are free from oil and solvents. Products such as silicone spray or washing-up liquid are ideal to use.
Rotor and Stator Set Technical Data
Length Stator: 670 mm
Diameter Stator: 124 mm
Grain size max.: 8mm
Capacity l/min at 400 rpm: 240
Capacity l/min at 200 rpm: 120
Working pressure max.: 20 bar
Head of rotor: dog drive (Slot)
