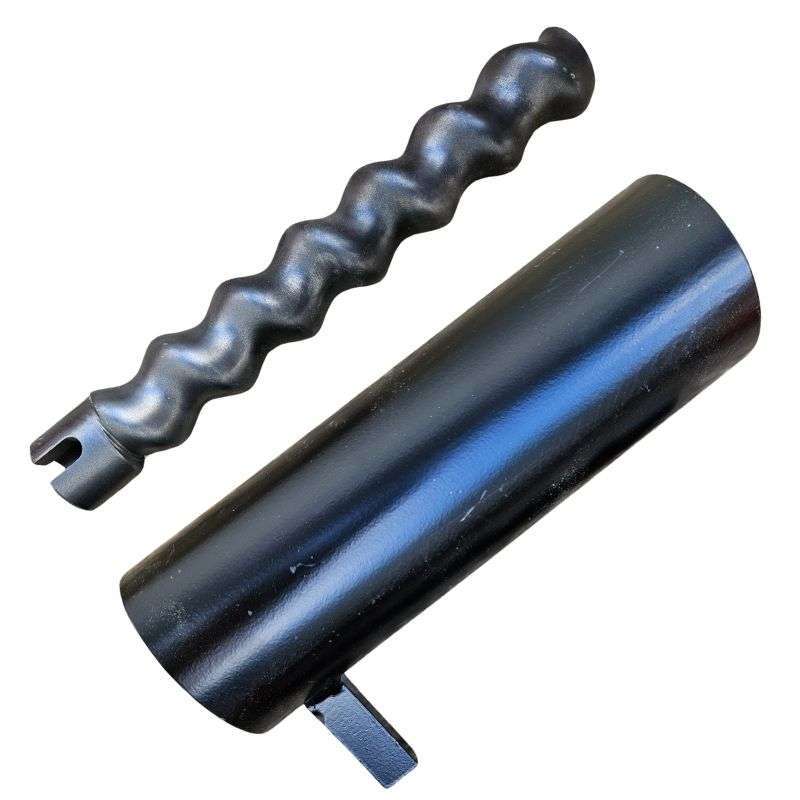

D8-2 Rotor & Stator Set (CES)
The D8-2 Rotor & Stator Set (CES) is for use with the MixPro 50, PFT G4 G5, Utiform Quattro and similar 3-phase rendering machines. This rotor and stator can spray render and pump latex screeds.
Rotor and Stator Technical Data:
| Length Stator mm | 270 | |
| Diameter Stator mm | 90 | |
| Grain size max. mm | 3 | |
| Capacity l/min at 400 rpm | 32 | |
| Capacity l/min at 200 rpm | 16 | |
| Working pressure max. bar | 25 | |
